HIKMICRO Eco & Eco-V
IR Performance, Surprisingly Affordable, and Absolutely Brilliant
- Enhanced Thermal Clarity with SuperIR
- Dual-camera Thermal Imager (Eco-V Only)
- 50° Wide Angle Lens
- Rugged and Durable
- 8 Hrs. Continuous Runtime
|
|
|
|
| Eco | Eco-V | |
| Infrared Image | ||
| IR Resolution | 96 × 96 (9,216 pixels) | 96 × 96 (9,216 pixels) |
| SuperIR | 240 x 240 (57,600 pixels) | 240 x 240 (57,600 pixels) |
| NETD | < 50 mK (@ 25 °C, F#=1.0) | < 50 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz | 25 Hz |
| Detector Pitch | 12 μm | 12 μm |
| Spectral Range | 7.5 to 14 μm | 7.5 to 14 μm |
| Focal Length | 1.35 mm | 1.35 mm |
| F-number | F1.0 | F1.0 |
| Field of View (FOV) | 50° × 50° | 50° × 50° |
| Spatial Resolution (IFOV) | 8.89 mrad | 8.89 mrad |
| Focus Mode | Focus Free | Focus Free |
| Distance to Spot Ratio (D:S) | 112:1 | 112:1 |
| Min. Focus Distance | 0.1m (0.33 ft) | 0.1m (0.33 ft) |
| Image Display | ||
| Visual Camera | 640 × 480 | |
| Display | 240 × 320 Resolution, 2.4”LCD Screen | 240 × 320 Resolution, 2.4”LCD Screen |
| Image Modes | Thermal | Thermal/Visual/Fusion |

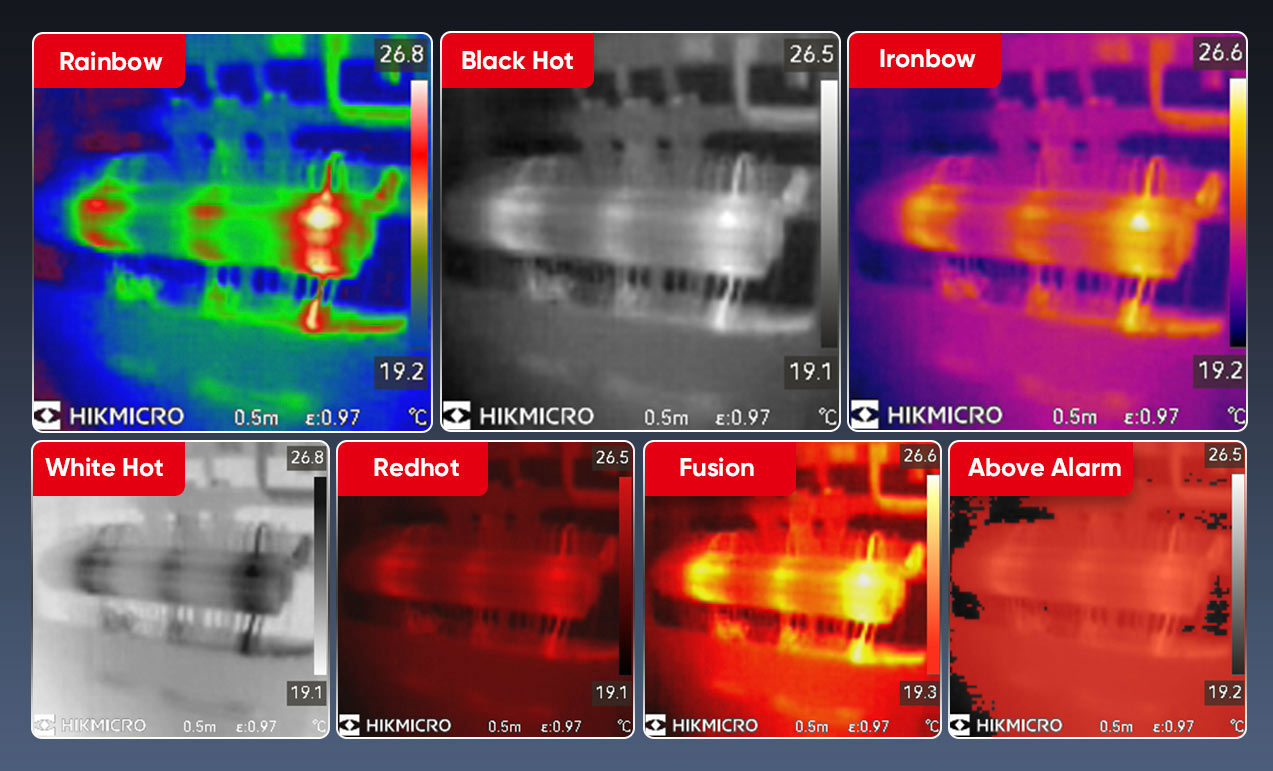

| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot,Fusion | White Hot, Black Hot, Rainbow, Ironbow, Red Hot,Fusion |
| Color Alarm | Above alarm | Above alarm |
| Measurement and Analysis | ||
| Object Temperature Range | Above alarm | Above alarm |
| Accuracy | Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F) | Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual | Auto/Manual |
| General | ||
| USB Interface | USB Type-C | USB Type-C |
| Laser | Yes, Class II | Yes, Class II |
| Battery Type | Rechargeable Li-ion battery | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 8 hours | Approx. 8 hours |
| Battery Charging Time | Approx. 3 hours fully charged(Adapter Output：5 V 2 A ) | Approx. 3 hours fully charged(Adapter Output：5 V 2 A ) |
| Protection Level | IP54 | IP54 |
| Drop Test Height | 2 m (6.56 ft) | 2 m (6.56 ft) |
| Working Temperature Range | -10 °C to 50 °C (14 °F to 122 °F) | -10 °C to 50 °C (14 °F to 122 °F) |
| Storage Temperature Range | -40 °C to 70 °C (-40 °F to 158 °F) | -40 °C to 70 °C (-40 °F to 158 °F) |
| Relative Humidity | < 95% non-condensing | < 95% non-condensing |
| Weight | Approx. 290 g (0.64 lb) | Approx. 290 g (0.64 lb) |
| Dimension | 196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in) | 196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in) |
| Tripod Mounting | UNC ¼”-20 | UNC ¼”-20 |
