LYNX 2.0
Compact. Detailed Observation.
- Sub-20mK High Sensitivity Brings Detailed and Informative Images
- Double-Charging Method and Fast Boot-On Bring More Lasting Use
- Software Revolution Brings a More Comfortable Visual Experience.
- Advanced Design for Great Operating Convenience
- Auto Screen Off Darkens the Screen to Save Energy and Increase Battery Time
|
|
|
|
|

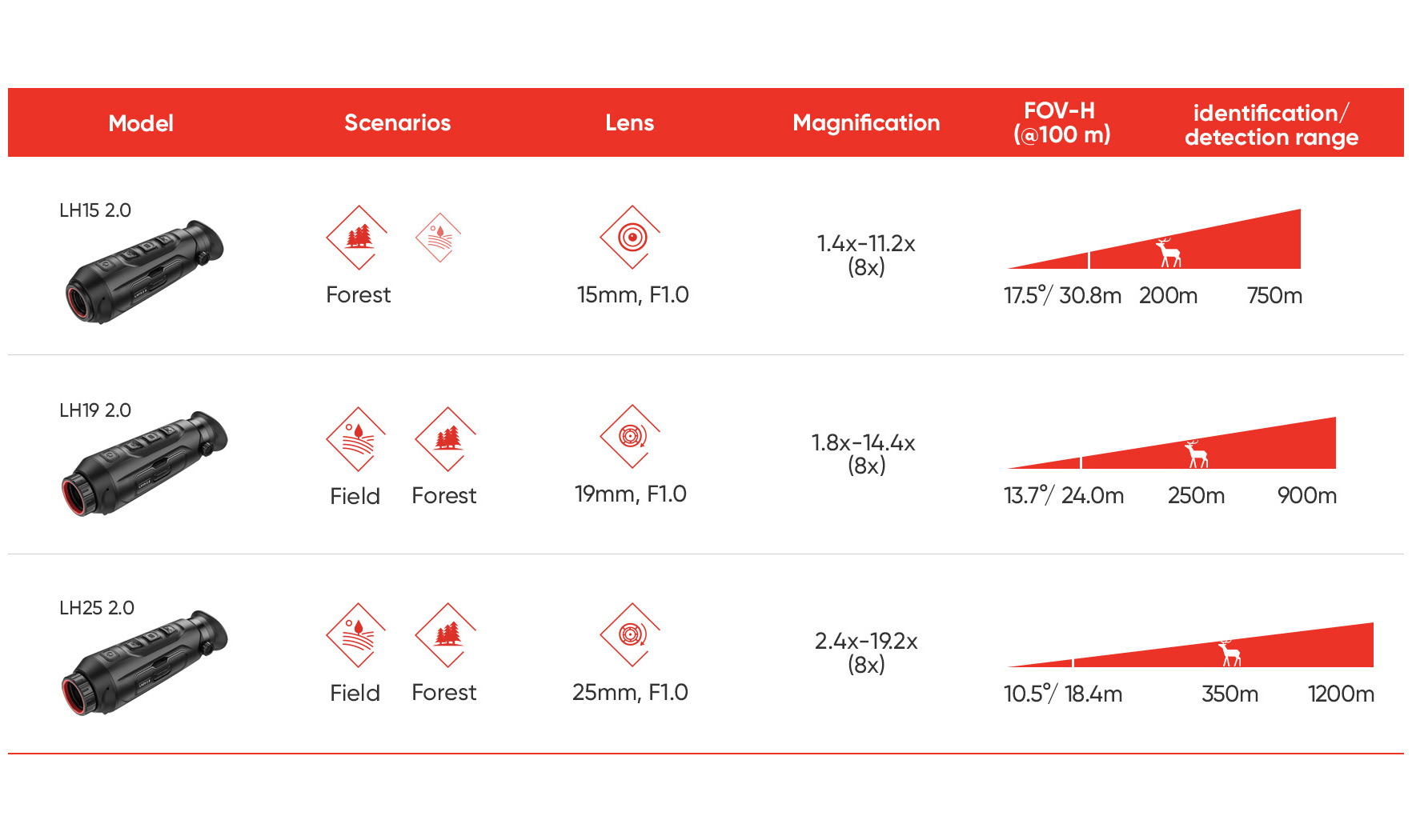

| LH15 2.0 | LH19 2.0 | LH25 2.0 | |
| Thermal Module | |||
| Image Sensor | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384x288 | 384x288 | 384x288 |
| Frame Rate | 50Hz | 50Hz | 50Hz |
| Pixel Interval | 12μm | 12μm | 12μm |
| Response Waveband | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm |
| NETD | Less than 20 mK (@25°C),F#=1.0 | Less than 20 mK (@25°C),F#=1.0 | Less than 20 mK (@25°C),F#=1.0 |
| Lens (Focal Length) | 15mm, f1.0 | 19mm, F1.0 | 25mm, F1.0 |
| Detection Range | 750m | 900m | 1200m |
| Focus Mode | Focus Free | Focus Ring | Focus Ring |
| Field of View(H × V), Degrees / m @100m | 17.5°×13.1°/ 30.8m×23.0m | 13.7°×10.3°/24.0m×18.0m | 10.5°×7.9°/ 18.4m×13.8m |
| Min. Focusing Distance | 1.5m | 1.9m | 2.5m |
| Magnification | 1.4x-11.2x (8x) | 1.8x-14.4x (8x) | 2.4x-19.2x (8x) |
| Image Display | |||
| Display | 1024x768, 0.39 inch, OLED | 1024x768, 0.39 inch, OLED | 1024x768, 0.39 inch, OLED |
| Contrast Adjustment | Yes | Yes | Yes |
| Brightness Adjustment | Yes | Yes | Yes |
| Palettes | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Exit Pupil | 6mm | 6mm | 6mm |
| Eye Relief | 20mm | 20mm | 20mm |
| Diopter (Range) | -5D to +3D | -5D to +3D | -5D to +3D |
| Tone Adjustment | Cold, Warm | Cold, Warm | Cold, Warm |
| General | |||
| Protection Level | IP67 | IP67 | IP67 |
| Weight | 272g without battery | 282g without battery | 277g without battery |
| Dimension | 164.0mm × 56.0mm× 60.8mm | 172.5mm × 56.0mm× 60.8mm | 172.5mm × 56.0mm× 60.8mm |
| Working Temperature | -30°C to +55°C | -30°C to +55°C | -30°C to +55°C |
| System | |||
| Record Video | Yes | Yes | Yes |
| Capture Snapshot | Yes | Yes | Yes |
| Hotspot | Yes | Yes | Yes |
| Standby Mode | Yes | Yes | Yes |
| Storage | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) |
| PIP | Yes | Yes | Yes |
| Hot Track | Yes | Yes | Yes |
| Distance Measurement | Yes | Yes | Yes |
| Audio Recording | Yes | Yes | Yes |
| Power Supply | |||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | 6.5-hour continuous running with CVBS and hotspot function off (@25°C) | 6.5-hour continuous running with CVBS and hotspot function off (@25°C) | 6.5-hour continuous running with CVBS and hotspot function off (@25°C) |
| Type-C Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply |
