LYNX S
Compact Size. Easy to Carry
- Large OLED Display for More Immersive Observation
- High Frame Rate, Smoother Detailed Images
- Convenient Brand New UI Design
- Compact Size, Easy to Carry
- Long Detection Range Breaks Through All Camouflage
|
|
|
|
|

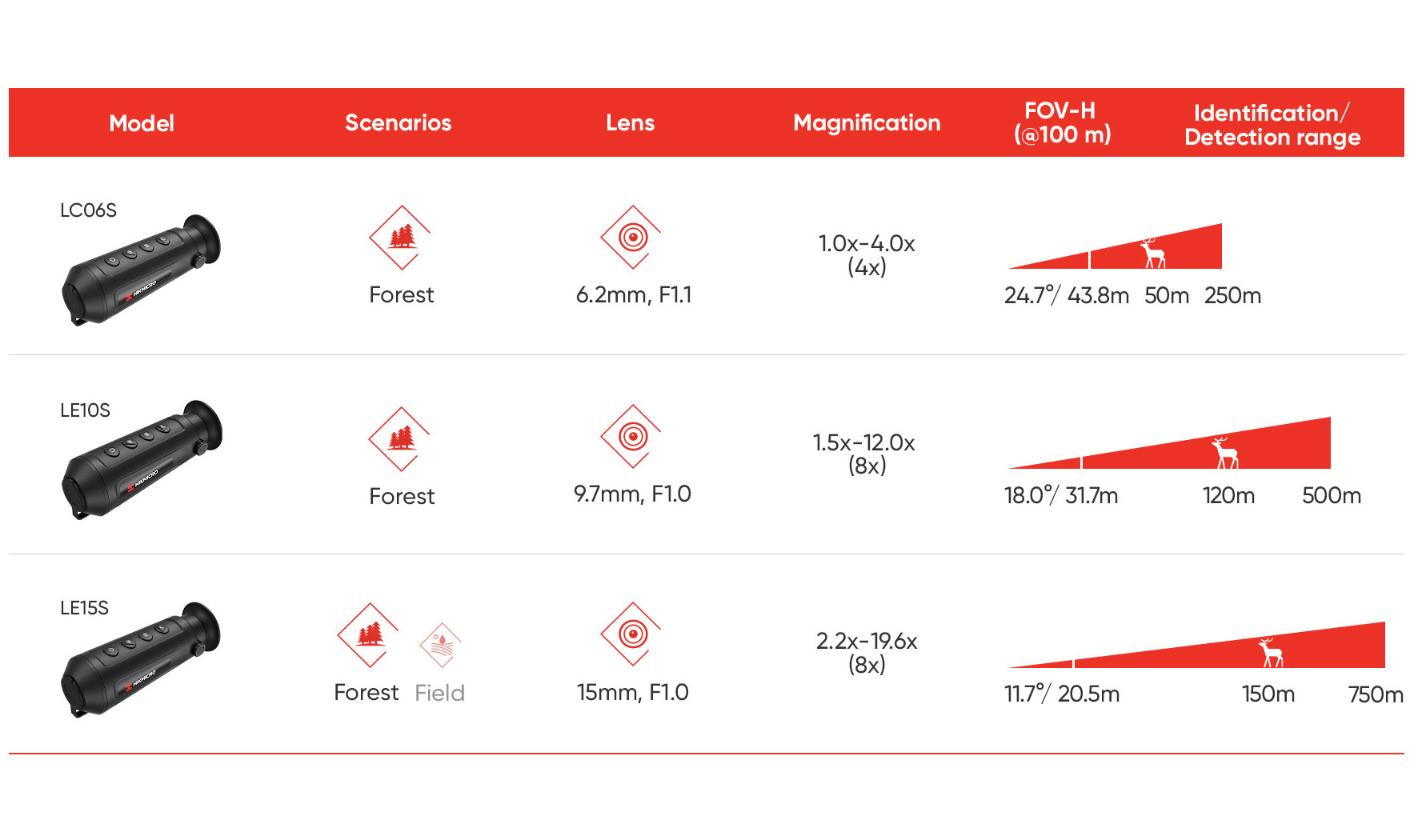

| LC06S | LE10S | LE15S | |
| Thermal Module | |||
| Image Sensor | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 160 × 120 | 256 × 192 | 160 × 120 |
| Frame Rate | 50Hz | 50Hz | 50Hz |
| Pixel Interval | 17μm | 12 μm | 17μm |
| Response Waveband | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm |
| NETD | Less than 35 mK (@25°C),F#=1.1 | Less than 35 mK (@25°C),F#=1.0 | Less than 35 mK (@25°C),F#=1.1 |
| Lens (Focal Length) | 6.2mm, f1.1 | 9.7mm, f1.0 | 15mm, f1.0 |
| Detection Range | 250m | 500m | 750m |
| Focus Mode | Focus Free | Focus Free | Focus Free |
| Field of View(H × V), Degrees / m @100m | 24.7° × 18.7° / 43.8m × 32.9m | 18.0° × 13.6° / 31.7m × 23.8m | 11.7° × 8.8° / 20.5 m × 15.4 m |
| Min. Focusing Distance | 1m | 4m | 10m |
| Magnification | 1.0× - 4.0× (4×) | 1.5x-12.0x(8x) | 2.2x-17.6x(8x) |
| Image Display | |||
| Display | 800 × 600, 0.32 inch, OLED | 800 × 600, 0.32 inch, OLED | 800 × 600, 0.32 inch, OLED |
| Contrast Adjustment | Yes | Yes | Yes |
| Brightness Adjustment | Yes | Yes | Yes |
| Palettes | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Exit Pupil | 20mm | 20mm | 20mm |
| Eye Relief | 6mm | 6mm | 6mm |
| Diopter (Range) | -5D to +4D | -5D to +4D | -5D to +4D |
| Tone Adjustment | Cold, Warm | Cold, Warm | Cold, Warm |
| General | |||
| Protection Level | IP67 | IP67 | IP67 |
| Weight | 250 g (0.55 lb) | 260 g (0.57 lb) | 280 g (0.62 lb) |
| Dimension | 158.4 mm × 60.4 mm × 57 mm (6.24" × 2.38" × 2.24") | 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24") | 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24") |
| Working Temperature | - 20 °C to 55 °C (- 4 °F to 131 °F) | - 20 °C to 55 °C (- 4 °F to 131 °F) | - 20 °C to 55 °C (- 4 °F to 131 °F) |
| System | |||
| Record Video | Yes | Yes | Yes |
| Capture Snapshot | Yes | Yes | Yes |
| Hotspot | Yes | Yes | Yes |
| Standby Mode | Yes | Yes | Yes |
| Storage | Built-in memory module (8 GB) | Built-in memory module (8 GB) | Built-in memory module (8 GB) |
| PIP | Yes | Yes | Yes |
| Hot Track | Yes | Yes | Yes |
| Distance Measurement | Yes | Yes | Yes |
| Audio Recording | Yes | Yes | Yes |
| Power Supply | |||
| Battery Type | Rechargeable Lithium Battery | Rechargeable Lithium Battery | Rechargeable Lithium Battery |
| Battery Operating Time | 10 hours continuous running with CVBS and hotspot off (@25°C) | 10 hours continuous running with CVBS and hotspot off (@25°C) | 10 hours continuous running with CVBS and hotspot off (@25°C) |
| Type-C Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply |
